Laser Marking Workstation
November 1, 2014

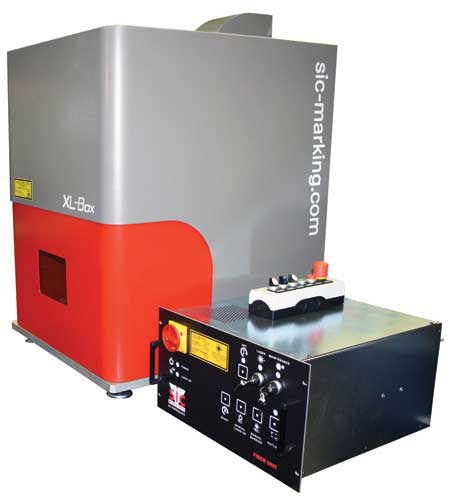

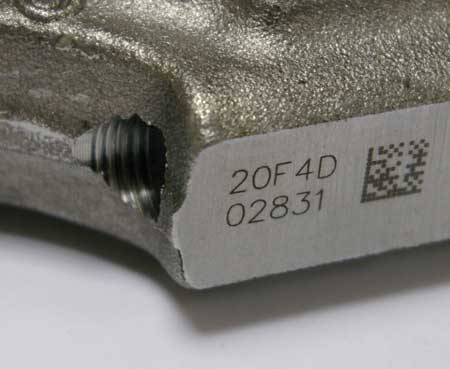

SIC Marking offers its XL Box laser workstation, designed to increase productivity at the workstation dedicated to marking and traceability of components. It is equipped with a fiber laser source doped with Ytterbium, which allows light or deep markings of alphanumeric codes, barcode and 2D data matrix codes on all metals and some plastics. Results are high-contrast markings produced in hundredths of a second that are human-readable or can be verified by a camera.
XL Box operates through a laptop (connected via USB port) with SIC LASER PC software that runs in a Windows environment. The software, which is included with the package, offers multiple options to configure marking while maintaining ergonomics and an easy-to-use interface.
XL Box is designed to enable users to work comfortably while loading / unloading parts. It has larger internal dimensions, with a 550 x 550 mm (21.65" x 21.65") work area, while maintaining a compact external size measuring 653 mm (25.708") wide.
Large size parts can be marked (up to 370 mm / 14.56" high) with a T-slot table with threaded holes for facilitating fixtures for parts support.
XL Box is equipped with a secured door (pneumatically powered) that closes automatically when a marking cycle is launched and opens by itself at the end of cycle. The settings of the Z-axis are done intuitively due to its 235 mm (9.25") motorized axis system. Focusing on the workpiece is simplified with the help of two red pointers.
The laser is safe for the operator in accordance with Class 1 EN 60825-1.
For more information contact:
SIC Marking USA
3812 William Flynn Hwy.
Allison Park, PA 15101
412-487-1165
info@sic-marking.com
www.sic-marking.com
