HMC Specializes in 5-Axis, High-Speed Aluminum Machining

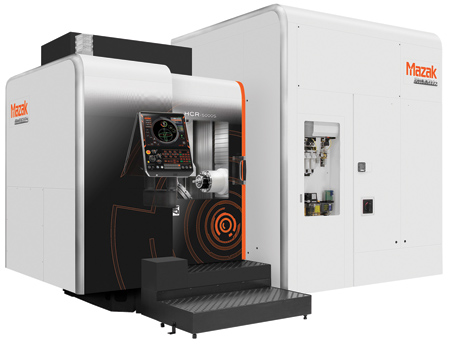

Mazak's new HCR-5000S 5-axis, single-table (S) horizontal machining center (HMC) is designed to provide the aerospace and semiconductor/high-tech industries with technological innovations for efficient small- to mid-sized aluminum component processing.

The machine offers a range of high-speed spindle options, from a standard 12,000 RPM spindle up to a 30,000 RPM one, and each feature an integral spindle/motor and ball screw core cooling that minimize vibrations for higher accuracy. A 40-tool auto tool changer, which is expandable to a 160-tool capacity, further boosts productivity with a chip-to-chip tool change time of only 2.8 seconds.

Linear roller guides allow the HCR-5000S to achieve 60-m/min rapid traverse rates, 1G acceleration/deceleration rates in the X- and Y-axes and 0.8G in its Z-axis to shorten overall machining cycle times. Also with the guides' low-friction, high-rigidity designs, the machine delivers aggressive feeds and speeds for everything from heavy-duty to high-speed cutting applications.

"The HCR-5000S achieves unmatched precision with its single-table design that incorporates a high-rigidity bed, solid base X-axis construction and roller gear cam systems for the A- and C-axes," said a company spokesperson. The machine's tilt/rotary table is designed to provide rapid traverse rates of 50 RPM in its C-axis and 30 RPM in the A-axis. The table positions in 0.0001-degree increments and accommodates parts weighing as much as 500 kg and measuring up to 700 mm in diameter and 644 mm high, depending on the cutting orientation.

In addition to full 5-axis machining capability, the tilt of the table - along with a chip conveyor and flood coolant - ensures efficient chip management and evacuation. To further optimize chip flow, the horizontal spindle orientation also makes it possible to machine a part inverted while a standard 800 L coolant tank accommodates a Niagara coolant configuration. For even higher levels of productivity and unmanned operation, the machine can be outfitted with an automatic two-pallet changer as well as a Mazak multi-pallet pool (MPP) system or be incorporated into a fully automated Mazak PALLETECH system.

Mazak's MAZATROL SmoothX CNC provides operators with complete control of the HCR-5000S. The SmoothX enables 3-D part program visualizations via its touchscreen to further improve ease of use in terms of programming and program checking. Cycle times are reduced between 10 and 20% and surface finishes improved due to the control's SMOOTH Machining Configuration options such as Seamless Corner Control, Active Vibration Control and Variable Acceleration.
