Multi-Pallet Pool System

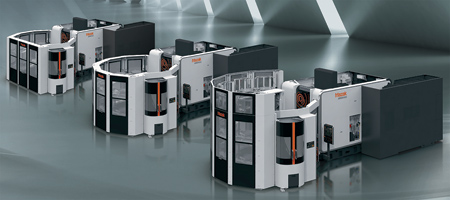

Mazak recently demonstrated its full simultaneous 5-axis VARIAXIS i-700 multitasking vertical machining center (VMC) equipped with the optional Multi-Pallet Pool (MPP) system, a compact multiple pallet stocker solution designed to provide additional DONE IN ONE part-processing versatility and allow for unmanned lights-out operations.

The MPP System features an innovative carousel-style design that maximizes utilization of space - it offers a larger Mazak PALLETECH System with up to a 44% smaller footprint. Servo motors on each axis, as well as a multi-level pallet arrangement that keeps each pallet the same distance from the center of the stocker, ensure fast and stable loading/unloading.

Designed to expand as production needs grow, manufacturers can also expand the system from a minimum of six pallets to house as many as 18 pallets for further increased output. To accommodate the relatively large, heavy parts produced in the VARIAXIS i-700, its MPP System uses square pallets measuring 19.69" (500 mm) per side that can accommodate workpieces 28.74" (730 mm) in diameter, 19.69" (500 mm) high and up to 1,323 lbs. (600 kg) in weight.

With a spacious Y-axis travel of 43.30" (1,100 mm) and X-axis travel of 24.80" (630 mm), the VARIAXIS i-700 easily accommodates workpieces measuring up to 33.46" (850 mm) in diameter and 19.69" (500 mm) high, though use of the MPP System limits this size during automated production. Its roller gear cam-driven rotary/tilt table, with 360° of rotation in the C-axis and +30° through -120° of tilt in the A-axis, is supported at both ends and provides stable high-accuracy machining.

An 18,000 RPM, 30 HP (22 kW) 40-taper spindle on the VARIAXIS i-700 features a compact nose design that helps increase the machine's Z-axis stroke to 23.62" (600 mm) and overall machining stability by allowing for the use of shorter tools. A 30-tool automatic tool changer adds part processing flexibility and contributes to continuous non-interrupted machining operations.

Speed and increased productivity are gained through the fast rapid traverse rates of the VARIAXIS i-700, as well as from its use of Mazak's MX Hybrid Roller Guide System in the X, Y and Z axes. The machine rapid traverses as fast as 2,362 IPM (60 m/min) in the X and Y axes and 2,205 IPM (56 m/min) in the Z-axis.

The VARIAXIS i-700 also features Mazak's MX Hybrid Roller Guide System designed to deliver high levels of durability and reliability for long-term accuracy. The innovative way system increases vibration damping, extends tool life, handles higher load capacities and eliminates tramp oil in the coolant by utilizing a greener grease-based lubrication system.

"For the greatest level of process optimization, the VARIAXIS i-700 with MPP includes the SMOOTH MPP software on board the machine's MAZATROL SmoothX CNC," said a company spokesperson. Operators can easily monitor production status with scheduling functions, tool storage monitoring and system utilization analysis accessible from the control's capacitive multi-touch screen. Options for network access also allow remote monitoring of production.
