CNC Gear Hobbing Machine

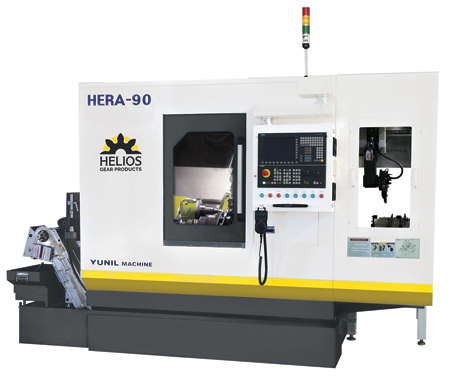

Helios Gear Products (formerly Koepfer America) now exclusively offers the Helios Hera 90 CNC gear hobbing machine from YG Tech for the North American market. This gear cutting solution provides high technology features such as FANUC 0i-MF control and servo motors, direct drive hob and work spindles, Heidenhain linear scale on X-axis for precise repeatable control of size and more.

Helios's Business Manager Adam Gimpert said, "The Hera 90 is the first of the Hera series to meet the demanding needs of our customers, and this includes not only a globally competitive price point but also a complete hobbing solution backed by industry experts for technical support."

The Hera 90 offers key features, such as 8.5 DP (3 mn) pitch rating, 6,000 RPM maximum hob speed and up to eight CNC axes. When equipped with the optional gantry loading and unloading system, the Hera 90 productively hobs a variety of gear types. Workpieces up to 12.600" (320 mm) length can be manually loaded or 7.874" (200 mm) length automatically loaded. Centerline distance between cutter and work spindles moves between 0.394" (10 mm) and 3.937" (100 mm), providing the capacity for a wide range of gear sizes. "With 6.300 in. (160 mm) hob shift, job shops and end-product gear manufacturers alike can benefit from this machine's productive mix of flexibility and capability in a small footprint," said a company spokesperson.

Several standard capabilities are available via the Hera 90's dialogue programming: one and multiple gears on a single workpiece, multiple-cut cycles, any combination of radial, axial, climb or conventional hobbing, crowning (lead modification), automatic shifting over a broken hob section, CNC hob shifting and burr-free hobbing using two equal hobs. Straight bevel gears can also be cut by index milling or generating cutting via the Conikron method. "In today's globally competitive market, gear manufacturers need a cost-effective, highly capable, yet versatile hobbing solution for fine-pitch gearing. The Helios Hera 90 fills this role like nothing else on that market," said David Harroun, Sales Manager of Helios Gear Products.

The Hera 90 uses direct-drive torque motors. A cast iron machine base provides optimum stability and dampening of cutting forces. The machine's slant bed design uses gravity to remove chips during the cutting process. Automatic X-axis (radial hob head position) retract at power failure ensures the safety of tooling during electrical loss. Total machine enclosure includes safety equipment such as electro-mechanical interlock and front splashguard doors.

The Hera brand is owned by YG Tech Co., Ltd., which has been building hobbing machines for over 50 years. The Hera series began development in 2004. "Helios is excited to be the new North American sales and technical support organization for the Hera line," said a spokesperson. "The Helios company offers over 30 years of expertise in supplying machines, tools and engineering solutions to gear manufacturers and brings a proven sales record with technical support."

For more information contact:

Helios Gear Products

635 Schneider Dr.

South Elgin, IL 60177

847-931-4121

sales@heliosgearproducts.com

www.heliosgearproducts.com
