Multi-Axis Servo System Conserves Energy



In a servo motor system, regenerative energy is the energy that returns to a drive when a motor decelerates. The amount of regenerative energy depends on the deceleration speed and load inertia. In laser cutting machines, the regenerative energy is typically large owing to their fast acceleration/deceleration and heavy mechanical structures.

Energy returned to drives is absorbed by the capacitors on a drive's DC bus. A multi-axis servo drive system does have a big advantage when handling the regenerative energy: the shared DC bus allows more bus capacitance to absorb and store more energy, which can be used in following acceleration cycles.

However, when regenerative energy is too high to be absorbed by the capacitors on a DC bus, the excessive energy needs to be managed-otherwise, it can cause servo drive system failures.

Normally the excess energy is burned off via brake resistors connecting to the drive's DC bus. This dissipates (and effectively wastes) the energy, creating heat in the process.

An alternative solution is to use capacitor modules in the system. This offers a way to slash operating costs, particularly in energy-intensive machine applications involving a lot of deceleration, such as laser cutting.

Both solutions are supported by ANCA Motion's AMD5x multi-axis servo drive system. The system uses a bussed system architecture. Its power supply unit converts three-phase mains electricity to a DC supply to all bussed drives.

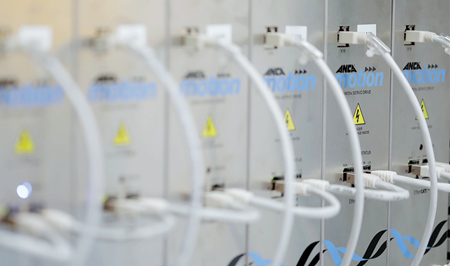

The AMD5x system is highly flexible and is suited to highly demanding CNC applications such as laser cutting. It is suitable for accommodating multiple capacitor modules as well as servo drives.

A frequently asked question about using capacitor modules is about its return on investment (ROI). The potential of capacitor modules to save machine operators' energy costs was explored recently, indicating a surprisingly short payback period.

For the analysis, a laser cutting machine operating at full load in a two shift-per-day scenario was created, assuming a 0.66 RMB per kWh electricity price and an air conditioner (used to cool the control cabinet) energy efficiency ratio of 3.

The performance of a machine with two capacitor modules in this scenario was compared to that of a machine with a brake resistor only.

The difference in wasted power was unsurprisingly stark. This stood at 4,500 W of wastage for the system with no capacitor modules, compared to 180 W with them. This translated into wasted energy per month of over 2,200 kWH versus 90 kWH.

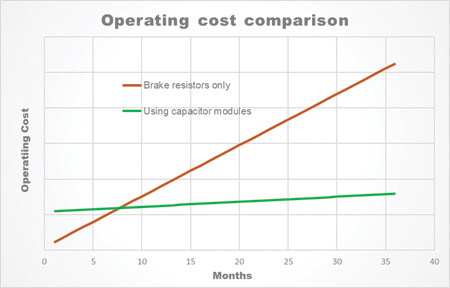

Operating costs-including the initial investment-drew level at around eight months, with these becoming significantly less expensive overall for the system using capacitor modules after that point.

With factories under unprecedented pressure to tighten their margins and get smarter with their power use, harnessing and reusing energy rather than burning it up and wasting it is an attractive proposition.

Authored by Heng Luo, ANCA Motion Product Manager
