Precision Rotary Tilt Tables

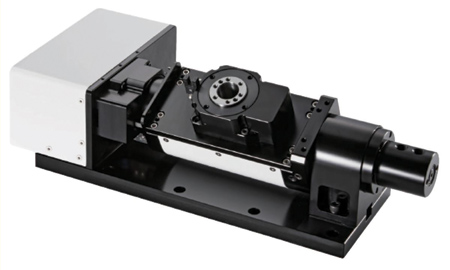

The integrated two-axes rotary gimbal assembly from Intellidrives provides high-speed machining capabilities for complex 3D part geometries. The precision-aligned system allows accurate positioning on a hemispherical surface. Multiple frame sizes with direct- or gear-driven options provide a wide range of load carrying capability.

This gimbal has gear-driven tilt axes configurations to meet the performance requirements of specific applications. Stepper or servo motor versions provide the operating speed and accuracy needed for specific applications.

Features include:

  • Resolution: 5 arc-sec
  • Repeatability: to 10 arc-sec
  • Load capacity: 10 kg.

The tilt axis can be equipped with a brake to hold axis position when power is removed. For large load applications, the gear-drive units provide higher continuous torque output while the drive mechanism limits motion in the power-off state. The precision anti-backlash gearing enables this higher torque output while still maintaining enhanced accuracy and repeatability.

For more information contact:

Intellidrives, Inc.

8510 Bustleton Ave.

Philadelphia, PA 19152

215-728-6804

sales@intellidrives.com

www.intellidrives.com
