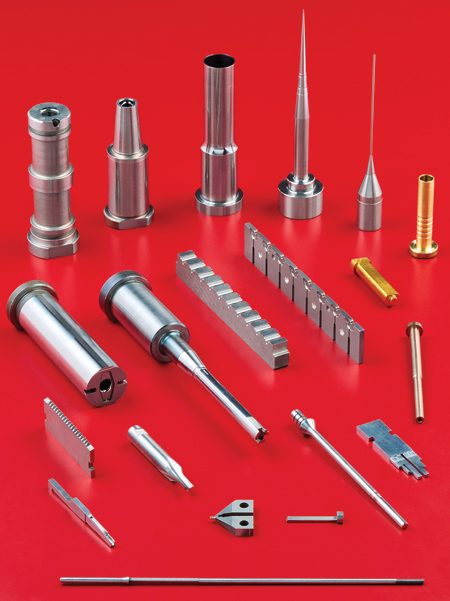

Custom Core Pins, Punches, Blades and Sleeves

Custom core pins, sleeves, ejectors, blades and punches are available from Regal Components, Inc. The company precision manufactures specials for leading manufacturers, distributors and end-users.

Regal Special Mold & Die Components can be precision ground to a tolerance of ±0.000050" in lengths up to 14" L with tip diameters as small as 0.002". Featuring surface finishes to 2 RMS, they can be custom manufactured from tool steels such as M-2, A-2, A-10, H-13, S-7, PM-M4, PM-10V, PM-15V, 420 and 440 stainless steels and beryllium-free copper alloys, and can be polished, coated and plated for additional wear resistance and lubricity.

Suitable for a wide range of OEM requirements, Regal Special Mold & Die Components can incorporate details including tapers, rings, vents, ribs and spirals shaped using wire EDM. Applications include molding a variety of medical, electronics and consumer products that require extreme precision such as needles, sheaves, closures, nipples, pipettes, IV connectors, shavers, electronic components and writing instruments.

Regal Special Mold & Die Components are priced according to material, configuration and quantity. Price quotations are provided upon request.

For more information contact:

Derek Coelho, VP Sales

Regal Components, Inc.

10 Almeida Ave.

East Providence, RI 02914
