Handheld Videoscope Series Supports Non-Destructive Testing

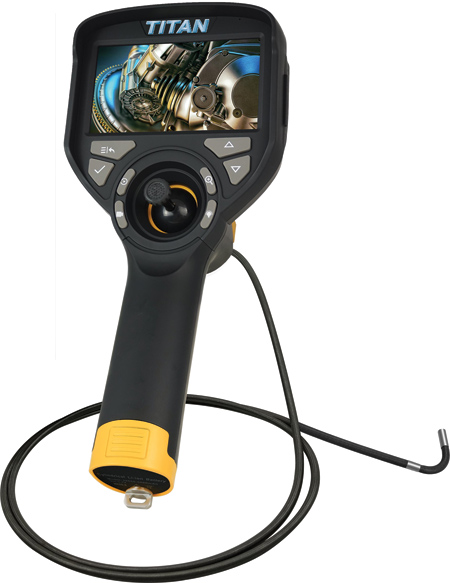

Titan Tool Supply Inc. offers its TVGM series family of miniature, high-definition handheld industrial-grade videoscopes designed to support a variety of nondestructive testing and remote visual inspection tasks.

Offered in four models, with a choice of either a 3.9 mm or 6 mm camera and either a 1.5M or 3M videoscope probe length, the TVGM series features dual-key operation, a fully modular and ergonomic design, ease of portability, one-handed operation and end-user capability to easily swap out probe lengths for increased application adaptability. The highly intuitive end user interface of the TVGM Series also offers fully end user selectable operation in up to 10 unique languages.

At the heart of each TVGM Series videoscope lies an onboard controller offering high-definition imaging, reliability and stability. Each TVGM Series videoscope is further equipped with a high sensitivity onboard 720P CMOS sensor, supporting continuous remote visualization, inspection and observation tasks, even under low or reduced light conditions. A 4.3" high-definition LCD touchscreen display with high-intensity LED illumination allows for clear viewing of the magnified images and videos captured remotely by the high-resolution videoscope camera. The device also offers on-demand recording, easy file access, parameter setting and real-time data storage of JPG or AVI files onto an onboard 32GB microSD card.

TVGM Series videoscopes feature an IP67-rated, wear-resistant braided tungsten alloy insertion cable for 360° all-way manual articulation. The cable provides abrasion resistance and includes a self-locking capability for more precise control. The series also includes a four-hour working rechargeable battery for an extended field service life and is supplied with a waterproof carrying case.

Typical applications for the Titan Tool Supply TVGM series include remote visual inspections of smaller-sized precision industrial machinery and equipment; casting; aviation MRO; automotive service and commercial HVAC inspections; remote detection of foreign objects, blockages, and structural defects; and comparative remote measurements of automotive engine cylinders, pistons, valves, carbon deposit detection, hydraulic and pneumatic parts, steel pipes, castings and containers, even in low or reduced light conditions and space-constrained environments.

For more information contact:

Titan Tool Supply, Inc.

68 Comet Ave.

Buffalo, NY 14216
