Fast Loading Automation System for Efficient Sheet Metal Handling
December 1, 2025

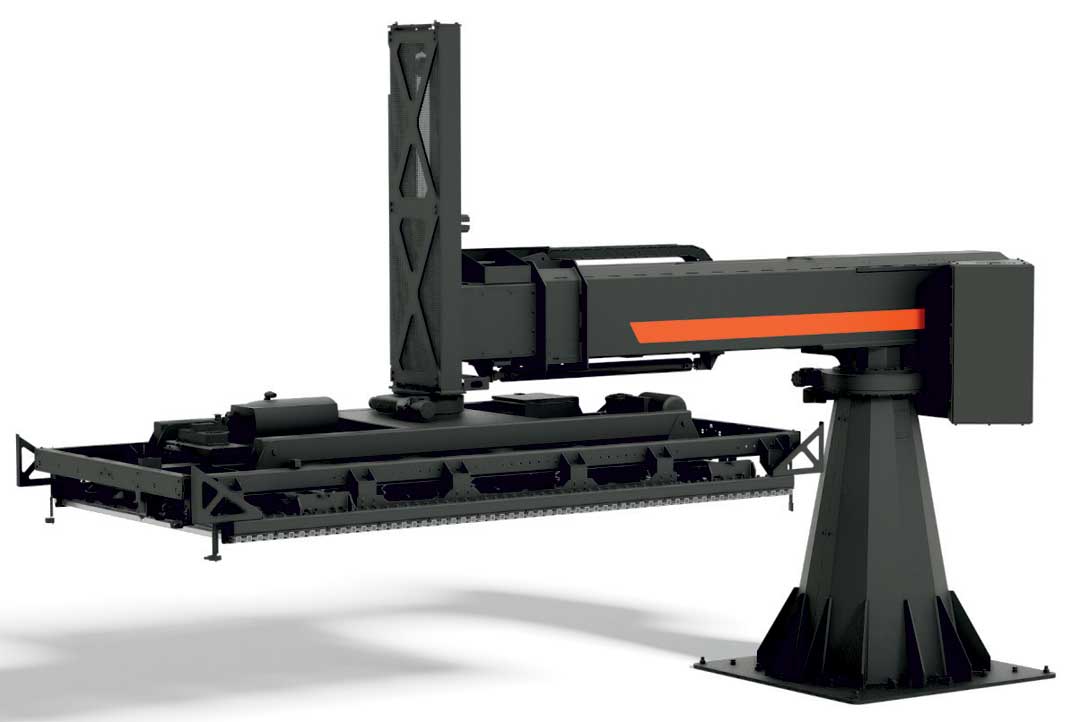

The Bystronic ByLoader Flex 3015 allows operators to simplify fiber laser cutting operations.

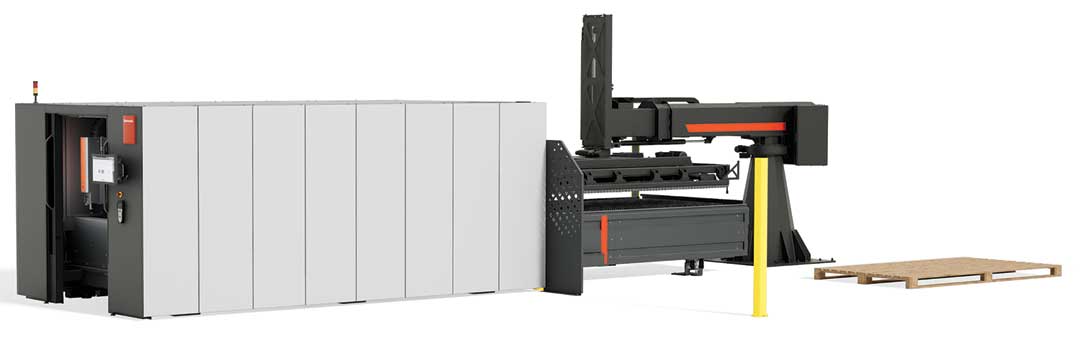

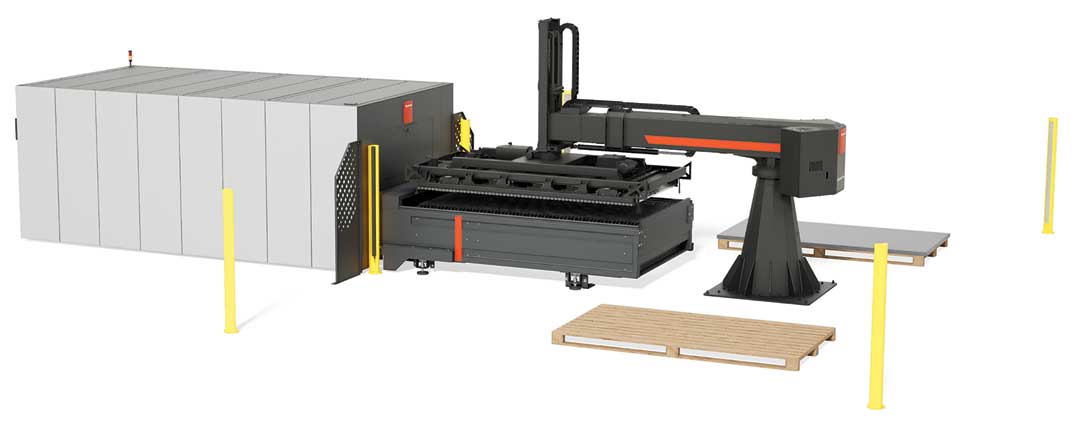

From material pallet(s) located beside the shuttle table, the ByLoader Flex allows users to quickly load the raw material onto the shuttle table and then unload the cut sheet onto the unload pallet(s). This optimizes the loading and unloading process-automatically, quickly, and reliably, the company reported. Depending on the layout configuration, the ByLoader Flex can utilize a combination from two to five pallet positions.
Each suction cup of the loading automation system can be activated independently. This reduces the energy consumption of the automated loading processes. In addition, it enables the handling of sub-sheet formats.
The integrated double fork unloading system enables the ByLoader Flex to unload the cut parts and material onto an unload pallet location. This allows a quick transition for the ByLoader Flex to load subsequent raw materials to be processed.
The integrated control enables easy operation of the ByLoader Flex. The system is controlled using the operator terminal of a Bystronic laser cutting system, so operators have all the controls on a single touchscreen.
Additional benefits:
- Double sheet detection avoids the picking of two sheets
- Flexible configurations of load and unload pallet locations are possible, depending on machine layout.
For more information contact:
Bystronic Inc.
2200 West Central Road
Hoffman Estates, IL 60192
847-214-0300 / 800-247-3332
sales.us@bystronic.com
www.bystronicusa.com
