Machine Simulation Predicts 5-Axis Singularity



"New machine simulation software from Hexagon's Manufacturing Intelligence division addresses long-suffered 5-axis machine instability so manufacturers can achieve quality without sacrificing productivity," said a company spokesperson.

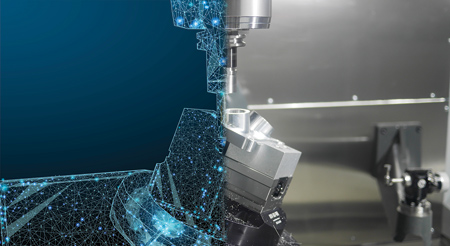

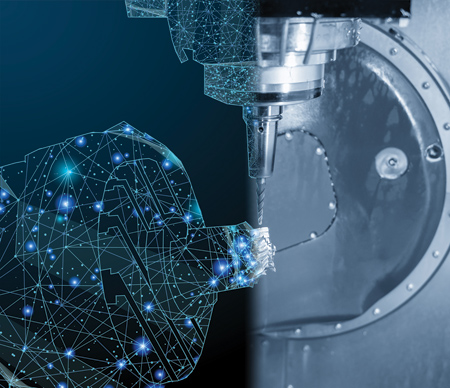

The spokesperson continued, "Enhancements to the NCSIMUL software-which serves as a digital twin of a specific machine to plan and optimize its Numerical Control (NC) programming-enable machinists to determine the location of the 5-axis singularity point and avoid it for the first time. This follows customer requests for vital assistance in ensuring a high-quality surface finish on their completed parts. It is particularly important when machining turbine blades and impellers for the aerospace industry-since 5-axis continuous cutting is used for 80% of aerospace parts-along with complex automotive and oil and gas parts."

When the toolpath generated by Computer Aided Manufacturing (CAM) software passes through, or near to, the singularity point, the machine tool behaves erratically, the company noted. "The machine tool can vibrate, causing chatter marks on the component being machined, which affects the quality of the surface finish. In order to do the job right the first time and reduce cycle times to meet delivery times, it is vital to stop the singularity point," said the spokesperson.

The new release helps predict the singularity point. "By predicting the lines of code where there may be problems with vibrations and surface quality, programs can be improved by modifying cutting strategy parameters or changing strategies altogether," said the spokesperson. "It also helps manufacturers optimize the stock position and orientation, which affect the achievable cutting feedrate of 5-axis continuous trajectories, leading to cutting factors that can differ significantly from the CAM program for a given machine."

"Singularity point analysis makes it possible to achieve the required surface quality for complex parts virtually before going to the shop floor to cut the first part," said Philippe Legoupi, Product Owner, Hexagon's Manufacturing Intelligence division. "NCSIMUL also now simulates the performance of the target machine to evaluate when the 5-axis cutting factor is close to 100%, so that users can modify the stock orientation and position to achieve the desired feedrate. Armed with these two capabilities, manufacturers can now decrease 5-axis cycle times and achieve consistent quality for any part."

A new material-specific optimization tool, Optipower, optimizes the program and limits the power necessary to remove material. "In NCSIMUL 2021.1, Optipower now calculates the cutting force applied to the tool's external contact point, ensuring the maximum force of the tool is not exceeded, specifically for the tangential cutting force. It also extends tool life, reducing tooling costs," said the spokesperson.

"This data is fully utilized," explained Legoupi. "We are working to make manufacturing smarter through better use of simulation data. The maximum torque and cutting force for each machining sequence are integrated into the analysis report, and progress can be monitored with a force-time graph visualization. This data is also used to define a minimum `feed by tooth' to avoid being below the minimum chip."

Additional enhancements to the latest software release improve productivity even more through faster simulation after making changes, along with greater automation and scripting flexibility. Data can now be sent from the user's CAM system to NCSIMUL 2021.1 without any adjustment before launching verification, meaning NC programmers can start debugging the G-code file during programming and seamlessly go back and forth between CAM and simulation.

According to the company, new intermediate stock management functionality ensures the simulation will always start from the last updated intermediate, saving hours of simulation time. When loading a new version of the G-code file, NCSIMUL automatically stores the previous file, and compares both records at the end of decoding.

For more information contact:

NCSIMUL Hexagon Production Software

250 Circuit Drive

North Kingstown, RI 02852

401-886-2000

www.hexagonmi.com
