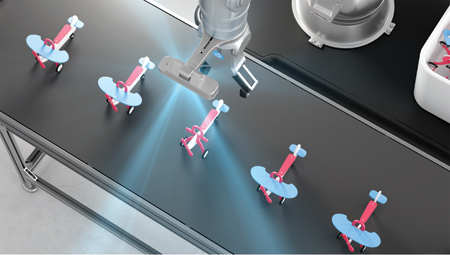

Software Update for Robot Vision System



OnRobot has launched a software update for its 2.5D camera-based Eyes vision system.

The new features, which enable Eyes to be deployed in quality inspection applications and on mobile robots, include one-shot detection for multiple objects, color and blob detection and automatic landmark calibration tools designed to speed cycle time for mobile robot set-ups.

"Eyes' new inspection features enable the system to easily sort, inspect or pick & place unstructured objects using color and contour detection-a capability that is beyond most competing vision systems. This detection method requires no workpiece teaching and finds items based on color and size information input by the operator," said a company spokesperson. Eyes' inspection features can be used to inspect parts removed from CNC machines, or to check IMM parts for excessive or inadequate material after part has been molded. The tools also support manual inspections: operators can set up a camera and inspection program, manually place a workpiece and execute inspection. No robot required.

The update also provides users with one-shot detection for multiple objects, allowing the system to pick all workpieces with only one picture. This reduces complexity for users and improves cycle times. The update includes tools that allow users to request specific workpiece types and specify gripper clearance parameters.

A new Landmark feature has been added to Eyes' toolkit, enabling easy deployment of Eyes on mobile robots and set-ups with carts, trays and pallets. The Landmark feature makes it simple to program mobile robots to move from station to station using end user-defined Landmarks as their guide. Landmarks can also be used to initiate specific robot operations: for example, when Eyes detects the arrival of a mobile cart in its workspace loaded with parts for picking, it can easily switch to pick & place routines.

For more information contact:

OnRobot Americas

222 W Las Colinas Blvd.

Ste. 854E, #120

Irving, TX 75039

469-586-8384

americas@onrobot.com

www.onrobot.com
