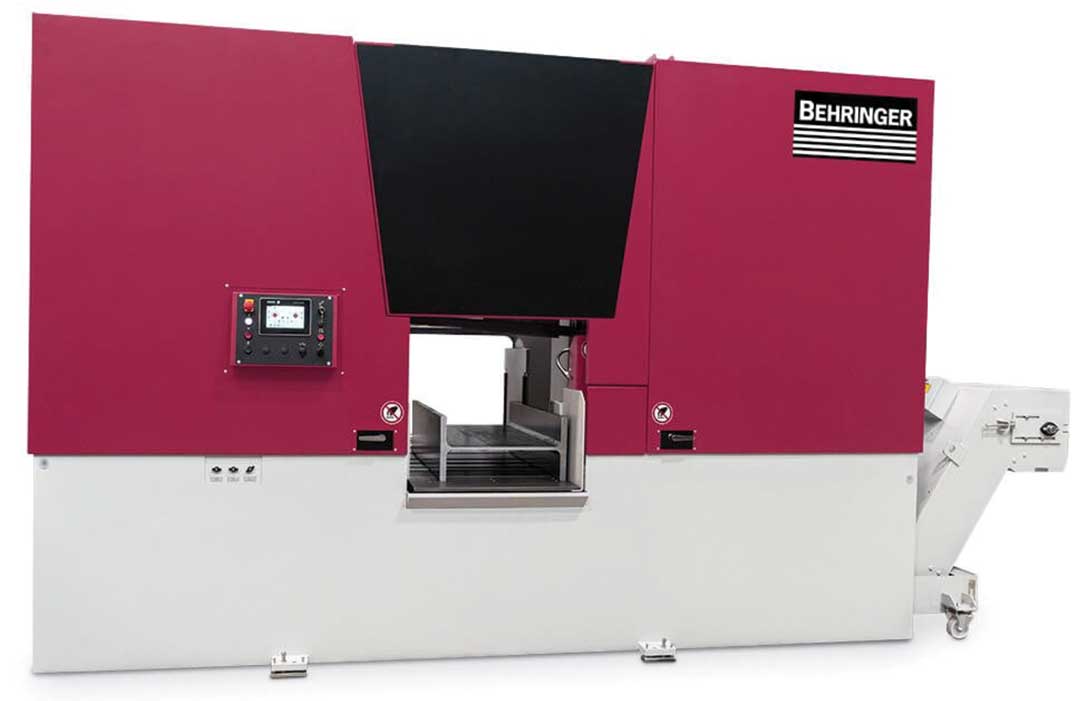

BEHRINGER Saws, Inc. offers its HBE663A Dynamic horizontal bandsaw. This automatic bandsaw is designed to deliver maximum performance for sawing bundled materials with a unique clamping device design, the company reported.
The HBE663A Performance features a double clamping vise, which offers process reliability by securely clamping the starting material and the finished cut, making it suited for bundle cutting or single cuts. The retracting fixed vise jaws enable precise positioning of even strapped bundles, enhancing overall cutting accuracy. Robust vertical clamping devices help ensure that bundles are securely held during sawing, providing precise and repeatable cutting operations.
The saw's servo downfeed system, powered by a ball screw and servo motor, reduces idle times and enhances feed precision. This results in higher cutting performance and extended band life, contributing to increased productivity and efficiency. The automatic guide arm helps enable optimum sawing results without adjustments, even with frequently changing material sizes, making it versatile for diverse production needs.
The sensitive BEHRINGER cutting pressure control system increases cutting performance by automatically adapting the saw feed to changing material cross-sections, which is beneficial when sawing tubes and profiles. The Auto-Feed-Control (AFC) system utilizes an extensive material database to automatically calculate optimal values for saw feed and cutting speed, enabling precision across a wide range of materials.
The feeding gripper handles heavy workpieces precisely, with optional single stroke feeding lengths of 1,500 mm or 3,000 mm, accommodating different production requirements. The machine's design promotes economical use of carbide saw blades through its robust construction, advanced servo technology, and efficient chip disposal, the company reported. The heavy-duty portal-design guide system combines a stable, low-vibration saw frame with a linear guide system to enhance precision and maximize service life.
The HBE663A Performance offers a cutting range of 26" for round materials and 28" x 26" for flat materials at 90°, allowing it to handle large workpieces efficiently. It can accurately process round materials as small as 0.8" in diameter and flat materials down to 0.8" x 0.8", providing flexibility for various material sizes. The machine is equipped with a drive power of 7.4 HP and adjustable blade speeds from 33 to 360 FPM, providing efficient cutting across different materials.
The chip conveyor system provides optimal chip disposal with a funnel-shaped machine base and a paddle-style conveyor featuring an integrated coolant tank. The cast iron band guiding parts, manufactured by BEHRINGER, provide vibration damping directly at the cutting edge, increasing tool life and enhancing cutting precision. The machine's dimensions of 88.6" in length, 173.2" in width, and 108.7" in height, along with a weight of 14,330 lbs., underscore its robust presence in production environments, the company noted.
The HBE663A Performance also offers the flexibility of individual configuration options, allowing users to tailor the machine to their specific production needs. By adapting the machine to precise production needs, users can maximize performance and efficiency, making it a solution for diverse applications.
For more information contact:
Behringer Saws Inc.
721 Hemlock Road
Morgantown, PA 19543
610-286-9777
info@usa.behringer.net
www.behringersaws.com
