Value Master VMC

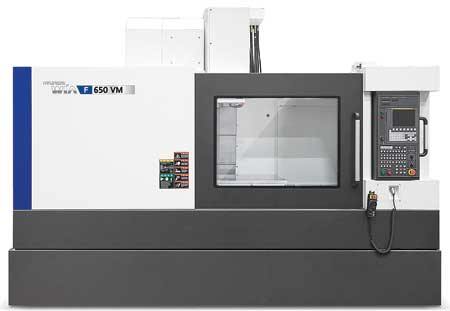

Hyundai WIA has announced the latest addition to its Value Master range of CNC vertical machining centers (VMCs), the F650VM.

The F650VM features travels of 51.2", 26.4" and 25" (XYZ). Standard features include a 30 tool swing arm tool changer, through spindle coolant, Big Plus spindle, rigid tapping and a 10.4" color LCD.

The bed, column and saddle of Hyundai WIA's Value Master Series are designed using finite element analysis (FEA) to help provide enhanced cutting and agility. They are composed of Meehanite cast iron to minimize deformation when performing heavy-duty cuts. The rigid bed is designed to absorb vibration for stable machining.

To help eliminate thermal growth during machining, all axes are driven by high-precision double-nut ballscrews. "The double pretension design provides outstanding positioning and repeatability with virtually no thermal growth," said a company spokesperson. "All ballscrews are connected directly to the servo drive motors without gears or belts, eliminating backlash. Rapid high-speed axis movement is achieved by the use of linear motion guide ways in all three axes. This reduces non-cutting time and decreases machining time for greater productivity." Rapid traverse: 1,418 IPM (36 m/min) in X- and Y-axis and 1,182 IPM (30 m/min) in Z-axis.

The standard Big Plus spindle system (BBT #40) provides dual contact between the spindle face and the flange face of the tool holder. This is intended to increase tool rigidity, reduce run out and add productivity to machining applications.

The F650 Value Master is configured with a 25 HP, 10,000 RPM spindle for taking deep cuts at high speeds. Angular bearings are designed to provide high-speed accel/decel for smooth machining at high RPMs. The main spindle delivers minimal noise and vibration even at the highest cutting speeds, according to the company.

Through spindle coolant is useful for deep hole drilling where it is necessary to keep chip flow clear of the cutting surface. It also helps to increase tool life and decrease cycle time.

Hyundai WIA's s are outfitted with 30 tool, side mount swing-arm type tool changers. This technology offers tool change times of 1.5 seconds, tool-to-tool. "With a capacity of 30 tools (plus one in the spindle), set-up time is reduced and run times can be longer, especially if loaded with redundant tools," said the spokesperson.

The 30 tool swing arm automatic tool changer and magazine are separated by a shutter system that closes during machining, thus keeping chips and fluids clear of the ATC and magazine. When a tool change is required, machining stops, the shutter opens, the ATC exchanges old tool for new, the shutter door then closes and machining begins again.

The Hyundai WIA FANUC i-Series CNC control features a 10.4" color LCD display as standard.

"The Value Master F650VM from Hyundai WIA is ideal for small to medium sized job shops, yet capable enough to handle high production 24/7 environments," said the spokesperson.
