Bridge Mill Series Offers Large Capacity, Heavy Cutting

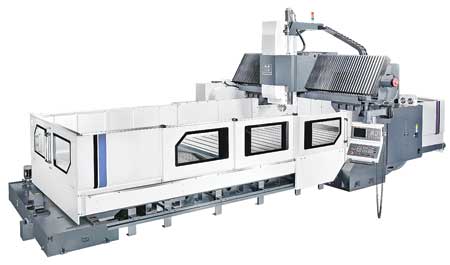

The Mighty Viper PRO-323 bridge mill features a large work envelope for manufacturing mold and die parts, and fast feeds for fine surface parts cutting. The PRO-323 machines are manufactured with a larger Y-axis, providing a wider work table surface. Four box ways on the X-axis and three box ways on Y-axis are intended to provide rigid and stable cutting.

The solid structural design incorporates a one-piece base designed to provide sufficient rigidity and vibration dampening. Additional features include extra-wide boxways, 60° angular contact ball bearings on feed screw and a high performance true gear spindle. Spindle head and ram are made from a one-piece casting for enhanced rigidity. The spindle design has less interference area, allowing for more flexibility in machining applications.

Machine features include:

  • Angular spindle head: 90° / 30°
  • Direct-drive spindle speed 10,000 RPM
  • Table load up to 36,000 lbs.
  • Table size up to 236" x 95"
  • 32/40/60 tool arm ATC
  • NC rotary table
  • Extra-wide guideways.

"The Mighty Viper PRO-323 bridge mills yield shorter cutting times, greater parts volume and lower cost of production," said a company spokesperson. Industry applications include automobile molds, aerospace parts, energy generation, oil field parts, plastic injection molds and railway systems, as well as mold, jig and fixture manufacturing.

For more information contact:

Mighty USA, Inc.

19706 S. Normandie Ave

Torrance, CA 90502

800-664-4489

sales@mightyusa.com

www.mightyviper.com
