CNC Multi-Spindle Lathe

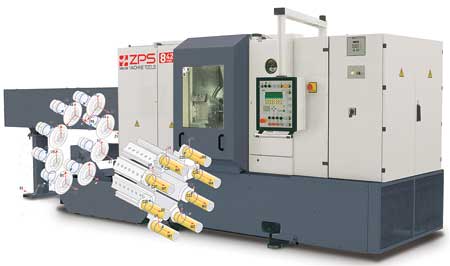

ZPS America offers the ZPS 8/42 CNC multi-spindle lathe. The eight-spindle machine, designed to turn complicated parts, includes features such as 16 + 1 independent tool carriers, bar sizes up to 52 mm and quick changeover flexibility.

"The ZPS machines are designed for precision, safety and long, reliable operation," said a company spokesperson. "The ZPS 8/42 CNC is designed to provide high accuracy during bulk and serial production with characteristics such as eight independent AC spindle drive units with 0-6,000 RPM and up to 72 CNC controlled axis for special equipment control."

The ZPS 8/42 CNC can handle a 2" bar diameter or a 10" chucker part. Through ZPS America's patented drive concept, each spindle puts out 11 kW of power while remaining thermally stable. The 8/42 CNC is also capable of working as a double four-spindle machine, manufacturing two different simple parts at once.

According to the company, features of the ZPS 8/42 include:

  • Capto quick changeover tooling
  • Simple, intuitive programming
  • Single-point pre-settable tooling
  • Five backworking tools, three driven
  • Complete serviceability over the Internet
  • 24/7 service and parts with direct, factory-trained support.

For more information contact:

ZPS America

4950 W. 79th Street

Indianapolis, IN 46268

317-452-4030

sales@zpsamerica.com

www.zpsamerica.com
