VMC Features 5-Axis Rotary/Tilt Table

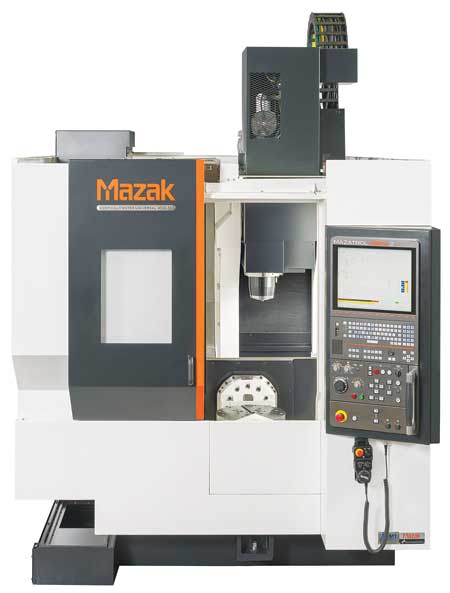

Mazak has introduced its new VERTICAL CENTER UNIVERSAL 400-5X, a small-footprint vertical machining center (VMC) that features a 5-axis rotary/tilt table with durable, high-speed roller gear cam technology. According to the company, these feature will allow manufacturers to produce small complex parts, such as those for the aerospace industry, productively and profitably.

Featuring a CAT 40 taper 10,000 RPM spindle, the VCU 400-5X offers metal removal capabilities in common materials, including steel, aluminum and cast iron. Other maximum spindle speeds are available, such as 12,000 RPM and 20,000 RPM in 40 taper as well as 42,000 RPM in E40 (HSK), so users can match spindle performance with their part machining requirements.

The spindle chiller on the VCU 400-5X is designed to maintain a constant spindle temperature to prevent heat build up and improve machining accuracy. Other benefits of the chiller include extended spindle life, increased machining capacity and reduced maintenance costs.

A 20 tool standard storage capacity on the VCU 400-5X provides continuous machining operation, while an optional 30 tool magazine is available. To reduce non-cut times, the VCU 400-5X features a cam-driven automatic tool changer that quickly exchanges tools and gets the spindle back in the cut. Tool monitoring on the machine helps maximize production efficiency and lower operating costs via early problem detection.

Axes travels of 19.88" (505 mm) in X, 15.74" (400 mm) in Y and 17.12" (435 mm) in Z allow the machine to produce part sizes up to 15.74" x 15.74" x 9.84" (400 mm x 400 mm x 250 mm). The machine's three linear axes attain high-speed rapid traverse rates of 945 IPM (24 m/min).

The trunion-style rotary/tilt table on the VCU 400-5X is constructed with durable high-speed roller gear cam drive technology for high torsional rigidity and positioning accuracy. The table tilts +95°/-45° in the B-axis and rotates 360° in the C-axis and can accommodate workpiece weights up to 440 lbs.

"The machine also features Mazak's MX Hybrid Roller Guide System that enables it to deliver high levels of durability and reliability, resulting in long-term accuracy," said a company spokesperson. "The way system increases vibration dampening, extends tool life, handles higher load capacities and eliminates tramp oil in the coolant by utilizing a greener grease-based lubrication system."

Mazak equipped the VCU 400-5X with the MATRIX 2 CNC control specifically for optimized 5-axis machining. "The control incorporates both enhanced hardware and software functionalities that make it easy to use while also delivering high accuracy and increased productivity for the machine," said the spokesperson. "The control's hardware performance is much faster with higher processing speeds for small increment operation, and a 5-axis spline interpolation function included in the control's software provides smooth toolpaths from long block-by-block programs, easy tool vector control and shorter cycle times as well as enhanced 5-axis surface finishes."

The VCU 400-5X is part of the VERTICAL CENTER UNIVERSAL Series, which consists of the VCU 300, VCU 400 and VCU 500.
