Mid-Size, Compact Horizontal Machining Center

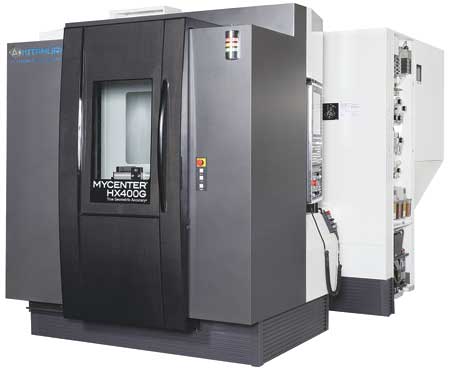

Kitamura Machinery offers its Mycenter-HX400G horizontal machining center (HMC) for medium to large size parts that require higher levels of accuracy and productivity. This 400 mm machining center is manufactured in Japan with hand scraping production techniques and offers accuracies of ±0.000079" full stroke, ±0.000039" repeatability.

Solid Box Guideways are equipped with linear scale feedback on all axes for enhanced accuracy and stability. A standard 2-station APC is field expandable and is coupled with full 360° 4th axis capability.

The Mycenter-HX400G utilizes a high speed 15,000 RPM spindle with dual contact design for high velocity machining on a wide range of materials. Kitamura's Intelligent Advanced Control System coupled with spindle oil-cooling unit promote efficiency and reduce heat displacement while allowing for cutting gains in precision cutting operations.

Kitamura's Mycenter-HX400G offers a maximum workpiece size of 24.80° x 29.33" (Dia. x H) within a small footprint. High-speed rapid feedrates of 1,969 IPM on solid box ways boost work throughput.

A 50 tool fixed pot automatic tool changer is standard with upgrade capabilities of up to 300 tools in the field. The high-speed processing of the Arumatik-Mi controller is designed to allow for smoother and faster machining of complex workpieces. It offers the potential to add 5th axis simultaneous machining capabilities on both pallets.

For more information contact:

Kitamura Machinery of USA Inc.

78 E. Century Drive

Wheeling, IL 60090

847-520-7755

info@kitamura-machinery.com

www.kitamura-machinery.com

Southwest

TX, OK, AR, LA

Gary Tipton

Campat Machine Tool

1700 10th Street

Plano, TX 75074

972-424-4095

www.campat.com

Southeast

AL, GA, MS, NC, SC,

TN, VA, WV & Panhandle of FL

Steve Flint / Don Flint

Flint Machine Tools, Inc.

3710 Hewatt Court

Snellville, GA 30039

770-985-2626

www.flintmachine.com

FL (except Panhandle)

Earl Marston

Kitamura Machinery of USA, Inc.

FL Tech Center

321-436-3313

sales@kitamura-machinery.com

www.kitamura-machinery.com

Northeast

MA, NH, VT, RI, ME, CT

Wendell Packard III

Packard Machinery Co., Inc.

504 Groton Road

P.O. Box 1618

Westford, MA 01886

978-692-3100

www.packardmachinery.com

PA, NJ, DE, MD, NY, N. VA

John Watkins

JBM Technologies, Inc.

76 Vincent Circle

Ivyland, PA 18974

215-672-8878

www.jbmtechnologies.com

JBM Technologies, Inc. (West Branch Office)

24688 US Highway 322

Cochranton, PA 16314

814-425-2505

www.jbmtechnologies.com

Midwest

N. OH

Jim Tipton

Tipton Machinery Company

7725 Hub Parkway

Cleveland, OH 44125

216-524-5750

www.tiptonmachinery.com

S. OH

Greg Knox

Knox Machinery, Inc.

375 Industrial Drive

Franklin, OH 45005

937-743-2641

www.knoxmachinery.com

IN

Kent Baker

CNC System Sales, Inc.

4760 Kingsway Drive, Suite A

Indianapolis, IN 46205

317-251-2770

MN, ND, SD, NE, IA

Craig Conlon

Concept Machine Tool

15625 Medina Road

Minneapolis, MN 55447

763-559-1975

www.conceptmachine.com

WI

Bob Jurack

Concept Machine Tool Wisconsin

407 Austin Circle

Delafield, WI 53018

262-646-4488

www.conceptmachine.com

N. IL

Mark Ulanov

Machine Tool Technology-21, Inc.

950 Estes Court

Schaumburg, IL 60193

847-891-1000

www.mtt21.com

MI

Eric Harma

Methods & Equipment Associates

31731 Glendale Ave.

Livonia, MI 48150

734-293-0660

www.methods-equipment.com

West

N. CA, NV (Except Las Vegas), WA, OR, ID

Gail Hogue

Hogue Precision Machinery

1033 Bartch Road, PO Box 651

Patterson, CA 95363

209-892-5649

hogueprecision@aol.com

www.hogueprecision.com

S. CA, NV (Las Vegas area)

Garry Frost

Machinery Sales Co.

17253 Chestnut Street

City of Industry, CA 91748

626-581-9211

mail@mchysales.com

www.mchysales.com
