HMCs for High-Precisions Operations

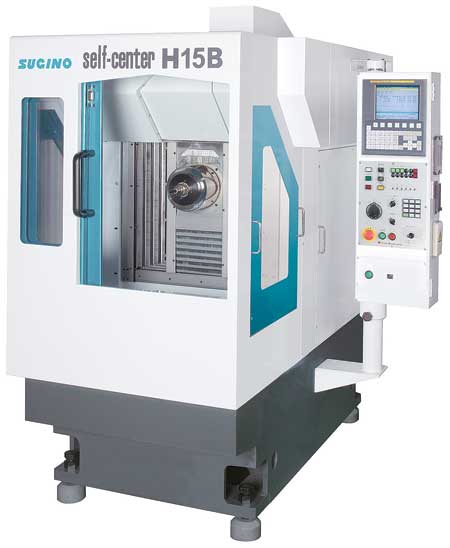

Sugino Corporation has introduced its Self-Center H15 and H15B horizontal machining centers (HMCs).

These machines are designed for high-precision milling, drilling, tapping and boring of small to medium size parts in aluminum, cast iron and carbon steel such as brake, engine and transmission components. The H15 and H15B feature BT30 high-pressure, coolant-through spindles with maximum speeds up to 15,000 RPM and 20,000 RPM, respectively.

The H15 features a 4.5' x 9' (1,375 mm x 2,750 mm) footprint, and the H15B a 3.5' x 9' (1,020 mm x 2,690 mm) footprint.

These HMCs provide a work area of 11.81" x 13.78" x 13.78" (300 mm x 350 mm x 350 mm), accommodating a weight up to 770 lbs. (350 kg) for the H15, and a work area of 7.87" x 7.87" x 7.87" (200 mm x 200 mm x 200 mm), accommodating a weight up to 1,100 lbs. (500 kg) for the H15B.

For more information contact:

David Becker

General Manager - Sales

Sugino Corporation

1380 Hamilton Parkway

Itasca, IL 60143

630-626-0518

dbecker@suginocorp.com

www.suginocorp.com
