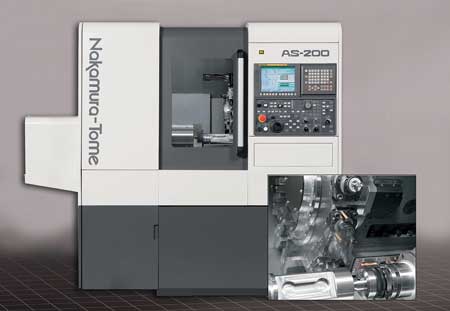

Single Spindle, Single Turret Multitasking Turning Center



Methods Machine Tools, Inc. has introduced the Nakamura-Tome AS-200 High Performance Multitasking Turning Center featuring a single spindle and single turret in a heavy-duty and compact machine. According to the company, the standard package is equipped with a powerful milling drive, a high-speed C-axis and 82 mm stroke Y-axis for accurate, finished parts.

"The new Nakamura AS-200 offers the quality our customers expect from Methods and Nakamura at a very competitive price point - it is an excellent solution for shops that want to get into multitasking," said Richard Parenteau, Director of Application Development at Methods Machine Tools, Inc. "The AS-200 features high rigidity multitasking for accurate machining at a superb value."

Standard spindle speed is 4,500 RPM. A 7.5 HP milling motor on a 6,000 RPM, 12-station turret with 1/2 indexing provides 24-tool capacity. Maximum turning diameter is 13.4" (340 mm) and maximum turning length is 11.8" (300 mm). The turning tool is 1.0" (25 mm) and the inside boring shank is 1.25" (32 mm). The Y-axis enables turning, drilling and milling off center.

Providing high rigidity, the AS-200 weighs 7,055 lbs (3,200 kg). It measures a compact 5' 6" (1,650 mm) x 5' 6" (1,600 mm).

"The AS-200 features a 10.4 inch high-resolution LCD panel that works in conjunction with the latest FANUC 0iTD controller to give a high degree of functionality, coupled with fast processing speeds," said a company spokesperson. "For easy-to-use and reliable support, the NT Nurse II System, NT Work Navigator and Overload Detection are standard on the AS-200. NT Nurse II is comprehensive software that provides user-friendly operation, programming and production support. NT Work Navigator facilitates easy part set-ups with no fixtures required. And for safety, the AS-200 has overload detection via an airbag, which greatly reduces any impact due to machine collision."

For more information contact:

Rich Parenteau

Methods Machine Tools, Inc.

65 Union Avenue

Sudbury, MA 01776

877-MMT-4CNC (877-668-4262)

sales@methodsmachine.com

www.methodsmachine.com
