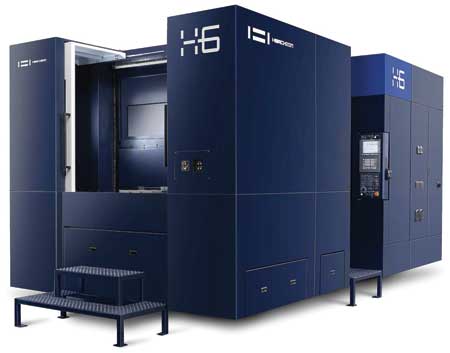

Hwacheon Machinery has announced its new H6 HMC for heavy-duty machine shop work.
"We researched what the machine shop market needed in a cost-effective, heavy-duty horizontal machining center, and we are now introducing the new H6," said Michael Huggett, Hwacheon Machinery America President. "For much of their work, many machine shops require an affordable heavy-duty 630 mm pallet machining center to produce various lots of steel, titanium and iron parts in short and longer runs."
"The new H6 offers high rigidity with stable box ways and a gear-driven 29 HP, 8,000 or 15,0000 RPM, 50-taper spindle for stable, powerful, high-torque cutting," said a company spokesperson. "A twin drive system for the X and Y axes ensures precise and faster cutting rates. Hwacheon's unique oil-jet cooling system ensures heavy-duty cutting performance and precision motion even after long periods of machining. Additionally, a strong frame structure designed with 3D design and FEM analysis supports workpiece quality."
According to the company, axis strokes are 1,050 mm X 900 mm X 1,000 mm with a B-axis rotation of 360°. Table working surface is 630 X 630 mm and load capacity is 1,600 kg (3,500 lbs.). With 41" of swing inside the machine, 80 mm pallets can be employed. The machine has a 40-tool magazine standard with optional 60-, 90-, 120- or 150-tool magazines capacities.
"The Hwacheon clean room assembly facility, where these super-precision, super-rigid spindles are manufactured, maintains optimal temperature and humidity, resulting in spindles that meet tough quality standards in the industry," said the spokesperson. "The transmission and the spindle motor are designed separately so that the heat and the vibration generated from the transmission do not interfere with the spindle motor."
According to the company, the H6 includes Hwacheon's software which is designed to maximize machining efficiency, productivity and quality. Hwacheon machining centers feature standard integrated software developed in conjunction with the latest FANUC CNC for thermal displacement control and compensation. "Software measures thermal conditions in the machine during the cycle and uses the information collected to verify and control accuracy," said the spokesperson. In this way, Hwacheon can control the kinematics of the machines for contour machining, optimizing machine performance for roughing, semifinish and finish machining without employing a number of different programs."
HTLD
Tool Load Detection software provides real-time measurement of tool load. This is designed to ensure consistent and safe machining. "Constantly monitoring tool damage and deterioration for prevention of complete tool failure causing workpiece damage, this software ensures accuracy and performance," said the spokesperson. According to the company, such a system will measure tool load very frequently, such as every 8 msecs.
HECC
"Hwacheon high efficiency contour control system offers an easy-to-use programming interface system which provides a precise, custom contour control for the selected workpiece while supporting longer machine life and reduced process time," said the spokesperson. This software offers different options for cutting speed and accuracy and for surface finish and geometry. A customizable display is designed to provide real-time monitoring and easy access. This software may be used with existing NC systems and is compatible with G-code programming.
OPTIMA
A cutting feed optimization routine utilizes an adaptive control method to regulate the feedrate in real time to sustain a consistent cutting load while machining. "As a result, cutting tools are less prone to damage and machining time is reduced," said the spokesperson. "The system controls the feed velocity to maintain consistent cutting load. Features include a graphic display of tool load and feedrate, convenient operation using G-code programming and a number of data sets for specific tool and process control."
According to the company, highly sensitive thermal sensors mounted at various locations in the machine castings where thermal displacement is possible can permit software monitoring and correction of detected thermal displacement.
HSDC
"Hwacheon spindle displacement control is also possible with software," said the spokesperson. "As a spindle rotates at high speed centrifugal forces and heat expand the spindle taper, causing error in Z-axis. This axis accuracy is vital to precision mating of die components. In addition to a high precision cooled spindle, software can be used to constantly monitor temperature at a number of points within the spindle assembly predicting thermal displacement. The system can then make necessary adjustments and effectively minimize thermal displacement, preventing Z-axis error due to taper expansion as the spindle rotates at high speed."
