5-Axis HMC for Extra-Large, Heavy Part Production



Mazak has introduced its latest 5-axis and multitasking technology for extra-large, heavy part production.

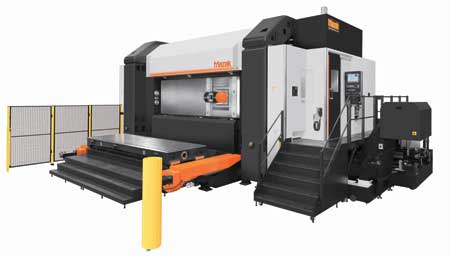

The VORTEX HORIZONTAL PROFILER (HP) 160 5-axis horizontal machining center for the aerospace industry features a special symmetrical-base-column integrated construction - combined with an advanced coolant system and efficient chip evacuation - designed to ensure rigid, reliable and precise machining.

According to the company, because of its large 157" x 49" vertically oriented worktable, the VORTEX HP 160 easily accommodates a maximum load capacity of 6,614 lbs. Users can also position the worktable horizontally for quick and easy loading and set-up.

"The machine comes standard equipped with a 60 HP, 26,000 RPM HSK-A63 integral motor spindle designed to quickly and easily cut through a wide variety of challenging materials. An optional 30,000-RPM HSK-A63 spindle is also available for applications that require even higher cutting speeds," said a company spokesperson.

The VORTEX HP 160 comes standard equipped with a tool magazine storage capacity of thirty tools, while a sixty-tool magazine option is also available.

Machine travels are 165.35 in X, 59.06 in Y and 21.65 in Z, and rapid traverse rates are 1,380 IPM in X and 1,176 IPM in both Y and Z. The VORTEX HP 160's rotary / tilt table has 200 degrees of rotation in the C-axis (360 degrees optional) and +/- 110 degrees of tilt in the A-axis.
