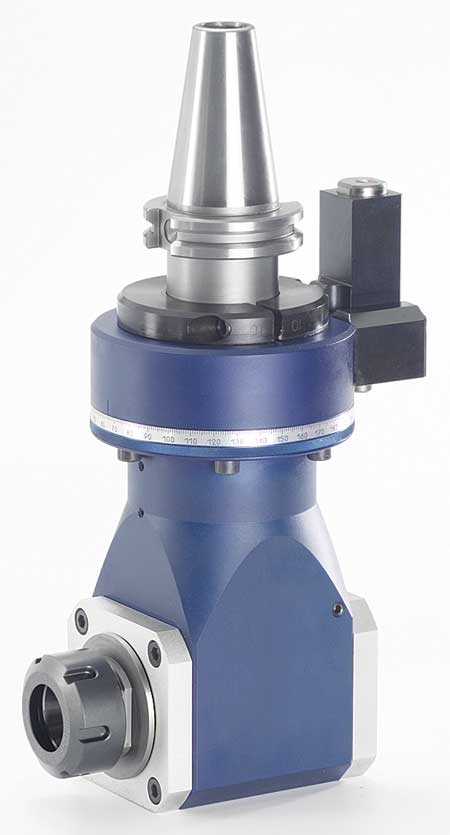

Heimatec angle heads are offered in various sizes and styles for all popular machining centers.

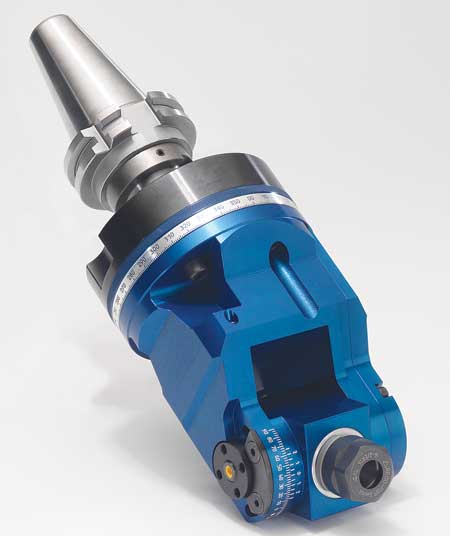

Adjustable angle heads
Heimatec now offers a line of standard and custom angle heads available in all popular sizes and styles to accommodate today's machine tools and CNC machining center builders. Designed for heavy milling, deep drilling and tapping operations often found in the off-highway, energy, rail and other heavy-duty industries, this line of angle heads features twin or double twin sets of matched angular contact bearings plus a rear radial support bearing for stability.
"All the gears on these angle heads have inclined teeth made from high-resistance gear steel and have been specially hardened, ground and lapped in sets to provide the smoothest transmission output possible," said a company spokesperson. "Heimatec angle heads are made from high-tensile strength aluminum. High-precision spindle bearings maintain the highest possible spindle concentricity."
Standard features of the line include full 360° body rotation with positive compression locking, 90° incremental repositioning without indicating, maximum torque to 150 Nm, gear ratio 1:1 standard with others available, spindle speeds to 18,000 RPM and interchangeable torque arms.
CAT 40, BT 40, BT 30, HSK 63A, CAT 50, BT 50 and HSK 100A taper styles are available, as well as custom modifications such at 18" extension shafts. Offset, slim, dual and adjustable styles are available. Heimatec offers a full one-year warranty on all parts and labor.
For more information contact:
Preben Hansen, President
Heimatec Inc.
16 E. Piper Lane, Suite 121
Prospect Heights, IL 60070
847-749-0633
info@heimatecinc.com
www.heimatecinc.com
