Traveling Gantry Series Machining Centers
October 1, 2025

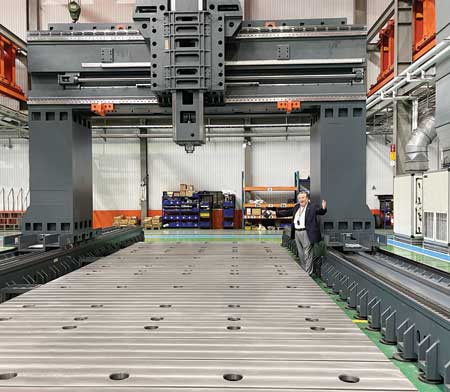

The Vision Wide XM series of products (3-, 4-, 5- and 6-axis) are large, moving column machining centers that were developed to reduce set-ups, improve accuracies and take up less floor space for the machining needs of large-scale precision machinery, electric power, wind power, energy, petrochemical, transportation and more.
Features of the XM Series:
- Large workpiece machining space: For precision machining of various types of structural parts, the series can provide large XYZ axis machining space.
- High-precise positioning: The high geometric accuracy and positioning accuracy capabilities of the whole machine enable large-scale precision machining.
- Heavy cutting capacity: The series provides a variety of high-rated torque spindles to meet the processing and cutting capabilities of various materials.
- Fully automatic multi-face machining: The series can be matched with various automatic attachment heads for high tangential speed mold surface machining and various types of precision parts complex angle machining. With enhanced tool tip point error automatic correction function and automatic additional head and tool exchange function, it can realize fully automatic machining performance.
- Full 5-axis heads: With Siemens, FANUC and HEIDENHAIN CNC controls available, the XM can be outfitted with a variety of 5-axis heads to meet the customer's specific application.
- VTL tables: Either a single or double VTL table can be designed into the bed of the machine to allow the customer to do a set-up on one VTL table while the other VTL is machining a part.
- 60-ton hydrostatic rotary table option: At either end (or both ends) of the standard table, an optional 60-ton rotary table can be added.
- Milling and turning compound multitask: This machine can be equipped with a high-torque and high-speed vertical turning table to realize milling and turning compound automatic machining.
- Custom designs for higher performance and wider applications: Vision Wide has designed some special applications that include dual VTL tables, zero point fixturing (off machine set-up stations) and extended high Y-axis cross rails with extended Z-axis travel RAMs.
