To grow as production needs increase, the design features of the MIKRON MILL P 800 U S full 5-axis milling machine from UNITED MACHINING provide for easy, seamless automation integration. As a flexible and scalable solution, shops can start with a simple standalone MILL P 800 U S, then expand their production capabilities into fully automated multiple-machine cells.
UNITED MACHINING constructed the MILL P 800 U S as a more compact machine with a reduced footprint and engineered it specifically for automation. The company relocated the electrical cabinet from the back of the machine to its left-hand side, thus allowing for direct robot loading from the rear of the machine.
Prior to the design change, a robot would load parts onto one of the pallets of the machine's two-pallet changer. Now, there is no pallet changer, and the robot arm itself moves into the machine with a pallet of loaded workpieces, which greatly reduces the cost of automation.
In terms of operator ergonomics and accessibility, having the automation in the back frees up the front of the machine for the operator and makes for a safer work environment. Typically, automated loading happens at either the front or at one of a machine's sides. That type of layout requires more floorspace because the machines either face the automation with no access to their fronts or are turned 90°. Automating from the back also helps reduce the entire footprint of a cell.
For increased stability and precision, UNITED MACHINING engineered the MILL P 800 U S as a full twin-ballscrew drive/twin-linear scale gantry machine. The twin drives compensate for any imbalanced cutting forces between the two drive torque motors on each gantry side, while the twin linear scales help ensure both gantry axis ends are always synchronized. The design also lowers stress on the machine to help reduce ballscrew and guide wear for longer life and less maintenance.

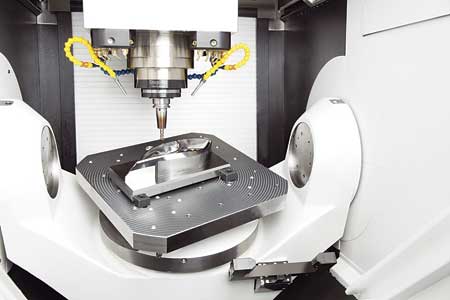

The MILL P 800 U S features a torque-motor driven rotary/tilt trunnion-style table that contributes to the machine's continuous full 5-axis simultaneous movement for smooth part surface contouring. The high-performance, high-dynamic torque motor drives eliminate backlash (pitch and reverse errors), friction, wear and heat generation.
"This equates to increased rigidity, longer lasting accuracy, unmatched 5-axis surface finishes and less maintenance, unlike worm gear or G-driven type tables that often require significant amounts of maintenance because of their inherent mechanical play," noted a company spokesperson.

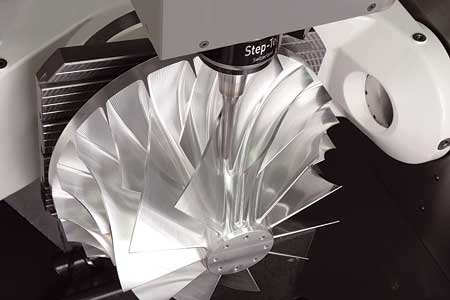

Optimized for roughing and finishing, the StepTec spindle on the MILL P 800 U S features a maximum speed of 20,000 RPM, an HSK-A63 interface, torque rating of 120 Nm and power output of 36 kW. This balance of speed and torque makes the spindle especially well-suited for a wide range of applications.
In addition to 120 and 170 tool storage capacities and 15-pallet storage unit, UNITED MACHINING offers several other performance-enhancing options for the MILL P 800 U S. These include the company's Operator Support System (OSS) module, Machine Spindle Protection (MSP) system, Automatic Machine Calibration (AMC) feature and EconoWatt function.
The OSS module enables selection of machine settings for adapted, optimal machining. In doing so, the module considers such machining priorities and parameters as time, precision, surface quality and worktable load, allowing users to tune machines to match component specifications.
To protect machine spindles, MSP prevents serious spindle damage in the event of a crash. The magnet-based collision system uses self-contained mechanical protection units composed of magnets within the spindle housing. These magnets separate and enable the spindle to essentially spring back to its normal position after a collision. The machine is immediately back in production and without the need for any geometry adjustments or outside service intervention.
As a new option, the UNITED MACHINING AMC automatically runs a program cycle to check and recalibrate a machine's kinematics. This feature is particularly critical when ambient temperatures fluctuate in a manufacturing facility and when performing full 5-axis machining because those operations involve multiple, simultaneous complex machine movements that require consistent accuracy. Automatic checks and recalibrations happen in single cycles that are advantageous for machine integration into automated operations and for reducing the amount of necessary skilled operator interventions during production runs.
For increased sustainability, the EconoWatt function available for the MILL P 800 U S saves energy, allowing operators to program a standby or sleeping mode. In standby, the machine will automatically initiate a warmup cycle prior to the operator arriving to run a job, while the sleeping mode shuts down unnecessary pumps and motors when the machine is not actually cutting. Plus, shops can initiate start up procedures automatically so that the machine is ready to start production as the next shift is available.
