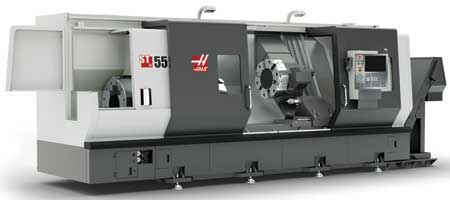

The ST-55 from Haas Automation, Inc., is a heavy-duty, large-bore turning center that is designed to be rigid, highly accurate and thermally stable. The machine's twin-chuck capability, high-torque spindle and 12.5" (318 mm) diameter through-bore make it useful for machining heavy pipes and fittings, large couplers and long rollers. It has a maximum cutting capacity of 25.5" x 80" (648 x 2,032 mm), with swings of 34.5" (876 mm) over the front apron and 25.5" (648 mm) over the cross slide. A servo-driven tailstock (MT5 taper) is standard, and a steady rest provision is available for additional support of long shafts.
A 55 HP (41 kW) vector dual-drive unit powers the ST-55's spindle through a Haas-built two-speed gearbox to provide 2,100 ft-lbs. (2,847 Nm) of torque in low gear. High gear provides a maximum spindle speed of 1,000 RPM. Both front and rear A1-20 spindle noses accept a variety of aftermarket large-diameter manual and pneumatic chucks.
The ST-55 comes equipped with a massive hydraulically clamped 12-station bolt-on style tool turret that accepts 7.25" (184 mm) split boring bar holders, as well as standard BOT toolholders. An optional hybrid BOT/VDI turret is available. Standard equipment includes rigid tapping, a color remote jog handle, a 15" color LCD monitor and built-in USB connectivity. Available high-productivity options include a belt-type chip conveyor, high-torque live tooling with C-axis, high-pressure coolant systems and more.
"To tackle the types of jobs common in oilfield work, the ST-55 is available with Haas Automation's proprietary Intuitive Programming System, which includes powerful built-in threading and rethreading cycles for both straight and tapered threads - something found on no other machine," said a company spokesperson.
The ST-55 features a heavy sheet metal enclosure that provides complete protection from chips and coolant during machining. A pair of wide sliding doors provides unobstructed access to the front chuck and main work area, both from the front and the top, allowing easy overhead loading.
The rear chuck area is also fully enclosed during machining, but a wide sliding door and swinging end panel provide complete access from the front and top, simplifying chuck installation and adjustment and making it easy to load pipe using an overhead crane. "Unlike some competing machines, it is not necessary to remove sheet metal panels or modify the enclosure to handle drill pipe," said the spokesperson.
For more information contact:
Haas Automation, Inc.
2800 Sturgis Road
Oxnard, CA 93030
800-331-6746
www.HaasCNC.com
