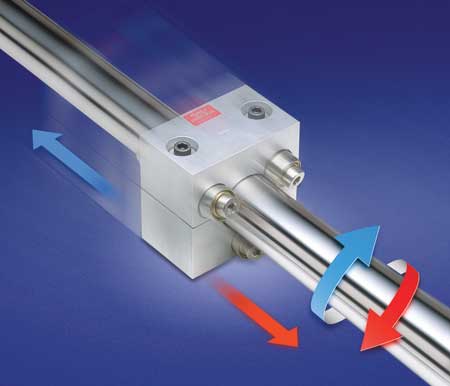

Roh'lix linear actuators from Zero-Max convert rotary motion to linear travel. They carry loads at speeds up to 70 inches per second and are designed for horizontal or vertical applications. Designed for positioning operations in all types of machinery, Roh'lix is often a less costly and better alternative to pneumatic actuators, belt actuators and lead screws, according to the company.
With its overload feature, Roh'lix linear actuators halt motion when an obstruction or pre-set level of thrust force is exceeded. According to the company, Roh'lix actuators are inherently safer than systems that use pneumatic actuators, belt actuators or lead screws.
Roh'lix linear actuators consist of three precision ball bearings at each end of a two-piece aluminum carrier block. Mounted at an angle to the drive axis, the six bearings convert drive shaft rotation into proportional linear travel.
The linear actuators are designed to handle motion thrust loads up to 200 lbs. The Roh'lix thrust capacity is adjustable so the actuator will stop when thrust setting is exceeded. This results in added safety - especially when there is human interaction, said the company.
"Roh'lix linear actuators provide a design option for systems requiring accurate positioning and motion control operations with the added feature of thrust load limiting," said a company spokesperson. "They are quiet, clean and smooth operating.
"Designed for maintenance free operation, Roh'lix actuators provide a minimum of 90% mechanical efficiency and an operating life expectancy is 2 million to over 100 million inches of linear travel."
Applications include packaging, printing, converting, materials handling, semiconductor manufacturing, test equipment, door openers and actuators, medical equipment, gantry robots X-Y tables, adjustable web guides and more.
Five standard Roh'lix sizes are available for 3/8" to 2" diameter shafts, and metric sizes from 8 mm to 50 mm diameter shafts.
Also available are Quick Disconnect Roh'lix models that disengage the Roh'lix block from the shaft, allowing switchover of equipment from automatic to manual operation and back again. Sizes from 3/8" to 3/4" diameter shafts and metric sizes from 8 mm to 20 mm diameter shafts (shafts not included with either Roh'lix models).
For more information contact:
Zero-Max, Inc.
13200 Sixth Avenue North
Plymouth, MN 55441-5509
800-533-1731
sales@zero-max.com
www.zero-max.com
