Expanded Lineup of Configurable, High-Capacity Electric Forklifts

Hyster has announced an expanded lineup of high-capacity electric forklifts that offer the configurability to match a range of heavy-duty applications. The integrated lithium-ion battery power of the Hyster J230-400XD series provides the performance required by demanding environments, while offering a zero-emission alternative to internal combustion engine (ICE) power, the company reported.

The J230-400XD series is available with a range of battery sizes to match duty cycle and charging requirements, configurable up to 280 kW. The 350-volt architecture provides a right-sized solution for ICE-like performance and energy efficiency. This solution offers long run times and minimizes energy loss without the additional cost and complexity of higher-voltage systems, the company noted. Hyster now offers this model series of integrated lithium-ion big trucks with load capacities from 23,000 to 40,000 lbs. and 24", 36", or 48" load centers.

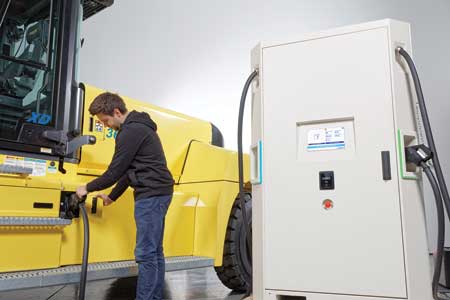

All Hyster electric big trucks incorporate the Combined Charging System (CCS) as standard. This global electric vehicle charging standard enables operations to cost-effectively scale charging for multiple applications and types of equipment through a single, standardized charging connector that has been adopted across numerous industries and geographies. Equipped with the right battery pack and charger, the truck in a typical duty cycle can add approximately an hour of work time from 11 minutes of charging at 90 kW. Each truck includes an onboard Battery Management System (BMS) that provides detailed information on battery health and overall performance. BMS also helps monitor overheating, control overcharging and manages lift interrupt at low charge. Ingress protection helps batteries and wiring withstand the demands of intense operating environments and conditions.

Multiple performance modes allow operators to tailor deceleration and regeneration to suit specific tasks. Based on the deceleration level selected, regenerative braking sends energy back to the battery, helping increase time between charges. The spacious cockpit-style cabin keeps all truck information and controls within reach. A range of seat configurations and an adjustable control arm help keep operators fresh. Batteries are integrated into the existing high-capacity truck design, helping provide the same level of rear visibility as on most equivalent ICE models.

For more information contact:

Hyster Company

1400 Sullivan Drive

Greenville, NC 27834

800-HYSTER-1

www.hyster.com
