Lantek and TCI Cutting have jointly developed an automated sheet unloading system. Successfully implemented at several strategic customer sites, this solution optimizes post-cutting material handling by eliminating manual intervention and thereby reducing downtime in the production cycle.
Integrated with Lantek Expert software, the system leverages technology developed by TCI Cutting, combining an intelligent suction cup grid with its Automation Systems Load & Unload platform for laser cutting machines. This integration enables fully automated and precise removal of parts directly from the cutting table.

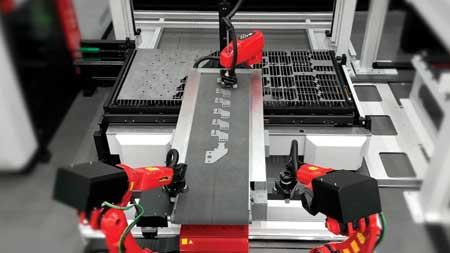

The system detects the exact position of each part, activates only the required suction cups, and enables precise handling based on the geometry and center of gravity of each piece. As a result, parts are unloaded without error, avoiding the suction of skeleton material or unwanted components and helping ensure that each part is safely and accurately handled.

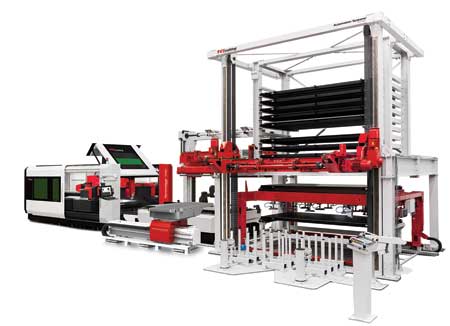

Machines equipped with TCI Cutting's Automation Systems Load & Unload are able to manage material loading and unloading autonomously and can be connected to intelligent storage systems. Once the cutting process is complete, the processed table exits the working area, and the suction system automatically removes the finished parts without any operator intervention, streamlining the production flow while improving both safety and ergonomics.
"Automating the unloading process without interrupting the cutting cycle is essential to improving efficiency in sheet metal workshops. This solution delivers precision, flexibility, and better machine utilization, reducing operator workload and optimizing the entire production process," said Francisco Pérez, OEM Channel Director at Lantek.
"This system not only prevents unloading errors, but also provides a flexible, modular, and fully customer-adaptable solution," a representative from TCI Cutting stated. "Unlike traditional systems that only allow stacking of identical parts, this solution deposits all cut parts at a single point, giving the operator freedom to organize them according to production needs."
Suction cup activation can also be manually configured, giving users full flexibility to manage parts with micro joints or complex geometries. Integration with Lantek Expert enables advanced process control, allowing operators to fine-tune settings based on production requirements and maximize operational efficiency in every cycle.
