Easily Switch Between OD, ID, and 5C Applications
January 1, 2026

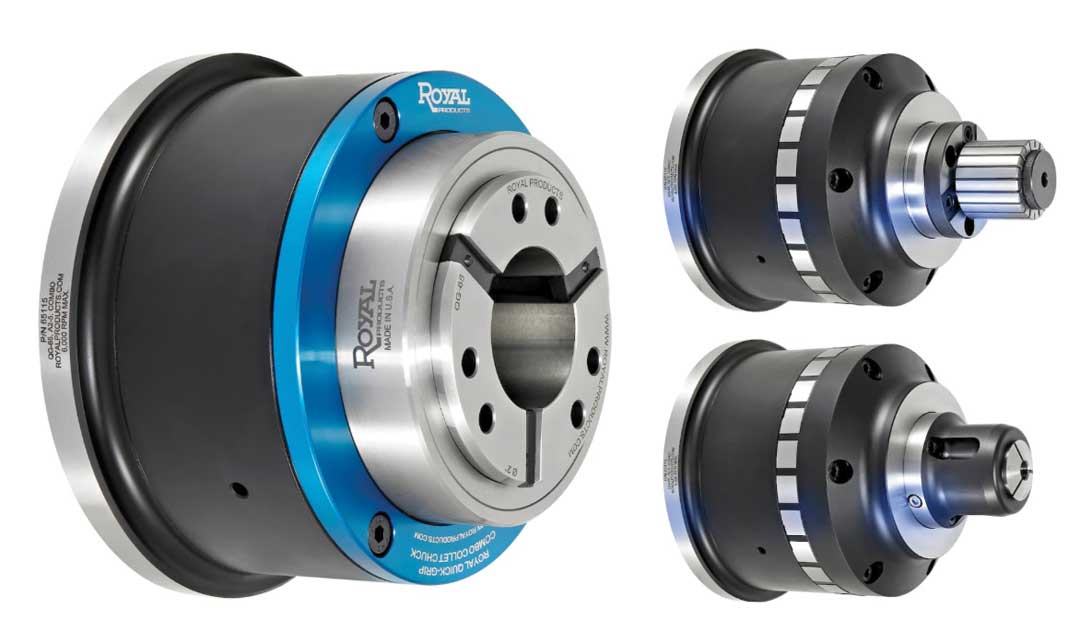

The Royal QG Combo Chuck represents the next generation of Royal Products' QG-65 Accu-Length CNC Collet Chuck. It is both a quick-grip collet chuck and an I.D. workholding system.
At its core, this is a Quick-Grip Accu-Length Collet Chuck, and because there is no Z-axis movement of the collet or workpiece, the chuck is suited for main and sub-spindle applications.
The chuck can also be quickly converted to an I.D. workholding system simply by attaching the nose cap and mandrel. Changeover time takes just minutes, and no adjusting of the prox switches is required. For very small diameter work, a 5C collet nose is also available (pullback actuation).
"Unlike other combination chucks that are based upon a pullback collet design, the Royal QG Combo Chuck is modeled on our Accu-Length design, ensuring precise part transfers from main to sub with no risk of Z-axis part movement," said a company spokesperson. "This makes the Royal QG Combo chuck a much better solution for sub-spindle applications compared to the pullback models offered by others."
With all Royal QG Collet Chucks, the collet segments always remain parallel to the workpiece for full length part engagement, enabling more aggressive chip removal.
All chuck components, except for the drawtube connector, are hardened to Rc 61-63 for high rigidity and durability.
For more information contact:
Brian Mecca, VP of Sales
Royal Products
200 Oser Ave.
Hauppauge, NY 11788
800-645-4174
info@royalproducts.com
www.royalproducts.com
